Customized 8 Stations Hydraulic Power Units-

Customized 8 Stations Hydraulic Power Units-
Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units- Customized 8 Stations Hydraulic Power Units-
Informasi Dasar
Tempat asal: Ningbo China
Nama merek: TianDi
Sertifikasi: CE,ISO
Nomor model: TDDL-
Kuantitas min Order: 20 pcs
Harga: negotiable
Kemasan rincian: Dikemas dalam kotak karton, dan kemudian palet kayu
Waktu pengiriman: 15 hari kerja
Syarat-syarat pembayaran: T/T, Western Union, l/c
Menyediakan kemampuan: 2000pcs per bulan
Harga terbaik Hubungi sekarang
Nama Produk: 8 Stasiun Unit Tenaga Hidrolik Tekanan kerja: 180bar
Ukuran pelabuhan minyak: G3/8 ” Ukuran tangki: Dari 4L hingga 12L
Katup: Katup Arah Laju aliran: Dari 2L hingga 8LPM
Voltase: DC24V Jenis pemasangan: horisontal
Menyoroti:

customized hydraulic power units

,

8 station hydraulic power units

,

hydraulic power units with warranty

Customized 8 Stations Hydraulic Power Units
Product Description
This Hydraulic Power Unit operates double acting cylinders, complete with 8pcs of CETOP 03 solenoid directional valves.
  • DC Hydraulic Power Unit with DC24V 1.6Kw electric motor
  • 2.1cc/r gear pump
  • 25Litres square steel tank with drain plug
  • Complete with suction filter, return oil pipe and air breather
  • Horizontal mounting
  • Max pressure: 2000PSI
  • Relief valve: RV2-08 (set pressure 2000PSI, adjustable from 50-210 bar)
  • Flow Rate: 5 l/min
  • Standard relief valve and check valve
  • Oil Port size: 1/4"BSP
  • Suitable for all kinds of double acting hydraulic cylinders
Technical Specifications
Specification Details
Motor DC24V 1.6Kw
Duty S3
Pump (cc/r) 0.75, 1.6, 2.1, 2.5, 3.2, 4.2, 4.8, 5.8, 7.0
Oil Tank (L) Plastic or Steel: 2, 4, 7, 8, 11, 13, etc.
Max. Pressure 210bar
Flow Rate 2LPM to 8LPM
Oil Port G3/8"
Valve 8 pcs Directional Valve
Tank Steel, 8L
Applications
CNC, Truck

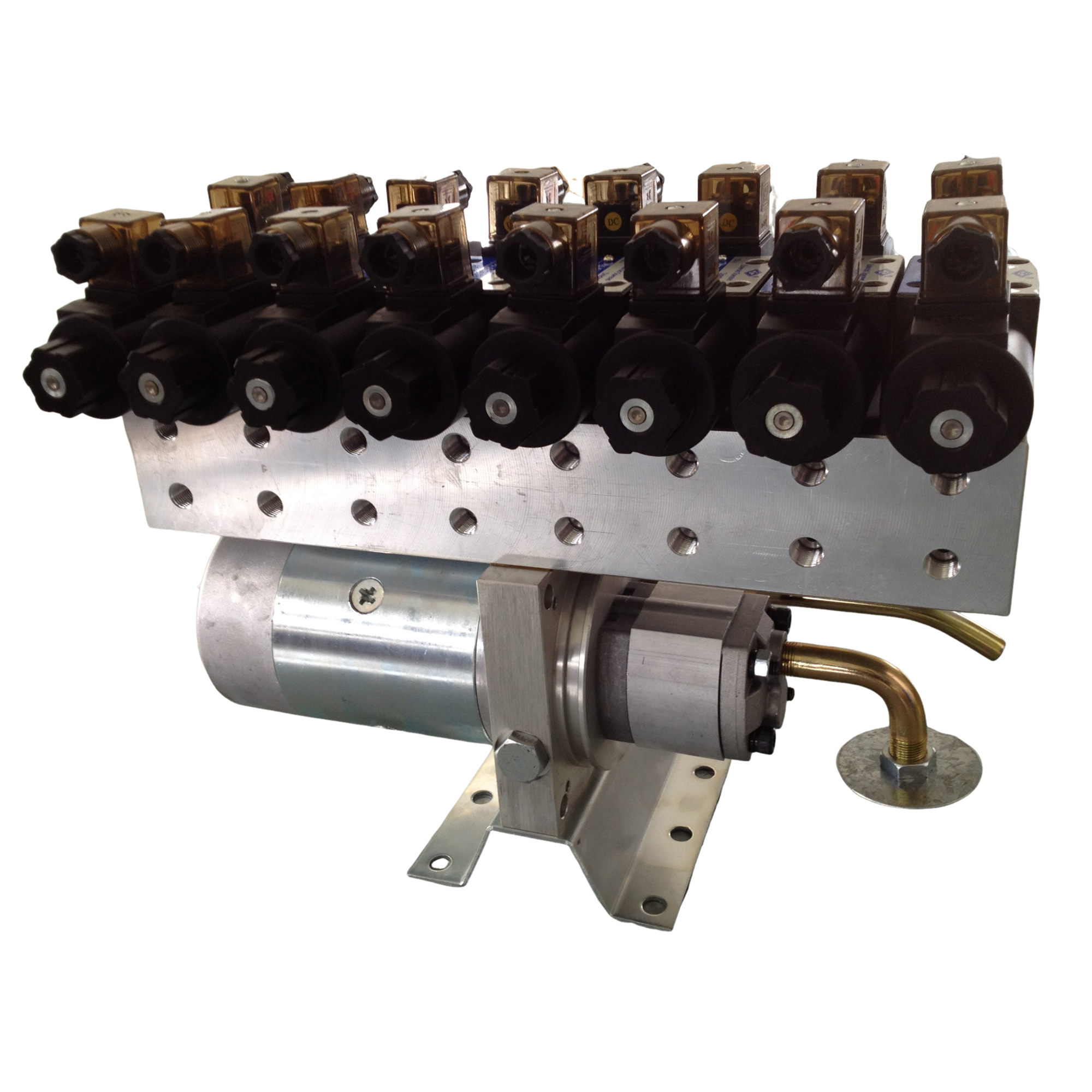

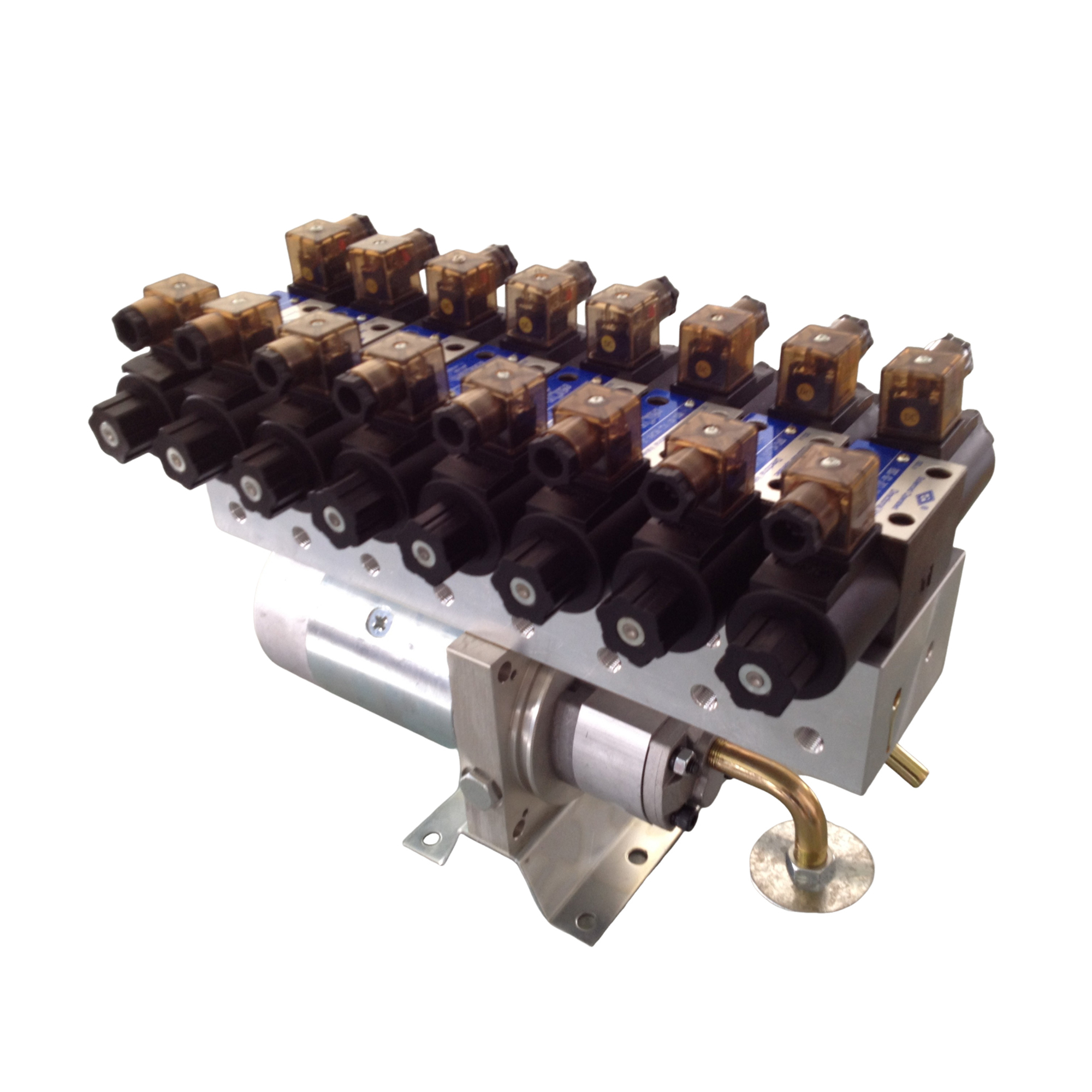

Product Images
Customized 8 Stations Hydraulic Power Units- 0 Customized 8 Stations Hydraulic Power Units- 1

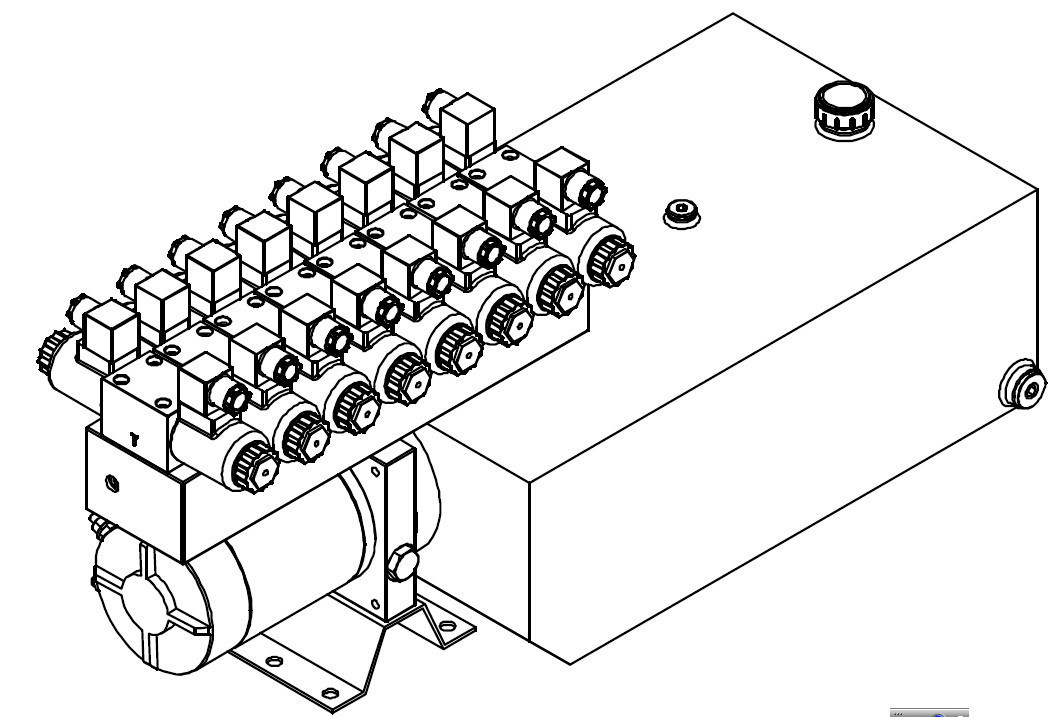

Technical Drawing
Customized 8 Stations Hydraulic Power Units- 2
Competitive Advantages
  1. TIANDI hydraulic is one of the earliest manufacturers of hydraulic packs and units, with a professional team for raw material purchasing to control costs. Our well-trained workforce ensures competitive pricing.
  2. Our export department staff is highly professional and efficient, experienced in export processing and documentation. They are available to assist with any product or process-related questions.
