DC 24V 0.5kw Small Hydraulic Power Pack for Pallet Truck Hydraulic Power Control Unit

Informasi Dasar

Tempat asal:	CINA
Nama merek:	TD
Sertifikasi:	CE,ISO
Nomor model:	Tddl25032601 ----

Kuantitas min Order:	10
Harga:	$120
Kemasan rincian:	Dikemas dalam kotak karton, dan kemudian palet kayu
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Menyediakan kemampuan:	5000/m

Harga terbaik Hubungi sekarang

Motor:	DC 24V 0.5KW	Pompa roda gigi:	0.26cc/r
TANGKI:	2L Tangki Palstic	Pelabuhan minyak:	G3/8 ''
Terpencil:	Kg4	Gw:	13.5kg
Tekanan kerja:	10mpa
Menyoroti:	24V hydraulic power pack , small hydraulic power unit , pallet truck hydraulic control

DC 24V 0.5kw Small Hydraulic Power Pack for Pallet Truck Hydraulic Power Control Unit

Product Specifications

Attribute	Value
Motor	DC 24V 0.5kw
Gear Pump	0.26cc/R
Tank	2L Plastic Tank
Oil Port	G3/8''
Remote	Kg4
G.W	13.5kg
Working Pressure	10MPa

Product Features

DC24V 0.5Kw motor with 0.26cc/r gear pump
2 Litre plastic tank with drain plug
Complete hydraulic power pack including suction filter, remote, return oil pipe and air breather
Vertical mounting design
Maximum pressure: 10Mpa
Flow Rate: 5 l/min
Includes relief valve (CV2-08) and check valve
Oil Port size: 3/8"BSP
2 Button remote with 4 metre cable

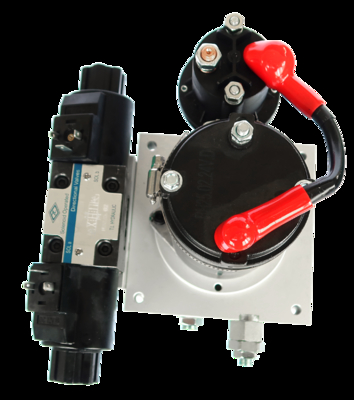

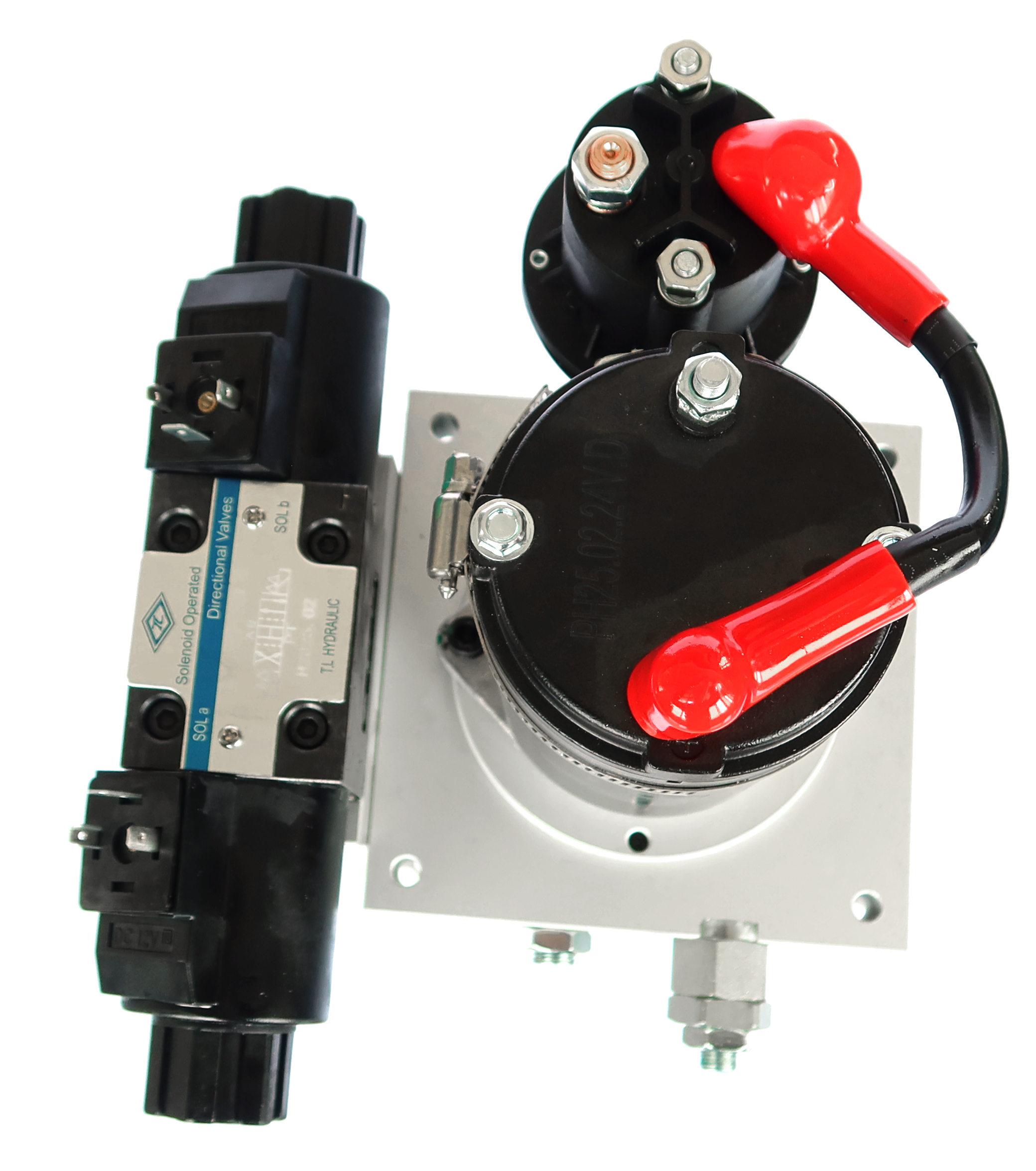

Product Images
